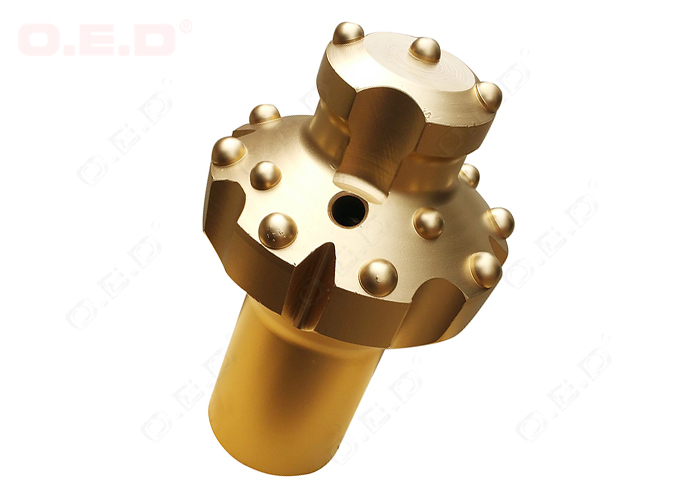

    R32-102mm Thread Button Bit Bench Drilling , Hard Rock Tools Long Life Time


    Integral Reaming Bit R32-102mm Thread Button Bit Bench Drilling Bit


    Integral Reaming Bit R32-102mm specification:

    Drill bit diameter Ø102mm

    Thread type:R32

    Weight:2.7kg


    Advantages:
    1.Entire CNC processing procedure ensure the quality consistency

    2.Military grade requirements of heat-treatment guarantee durability

    3.Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.


    Button Bit figuration

    Carbide Buttons:15pcs

    Button on the top:3pcs

    We are professional in selecting the type of bits, such as button configuration, tapered degree, diameter, and so on. Please let us know the details of the application, in this case we will let you get the most appropriate products.


    Polit Adaptors with T.C. Tipped head and Reaming Button Bits with diameters 64mm to 102mm(2 1/2”-4”). Other Reaming Equipment is available for larger hole size requirements.


    Following are some similar reaming tools, FYI


    Reaming Tools

    6° Taper

    Reaming bit

    Carbide dimensionDWeight

    Code No.

    GaugeFront[mm][in][kg]
    [No.][mm][No.][mm]

    89.548642 1/20.9043030
    6113117631.2543031
    812.7411893 1/21.8043014
    Pilot adapterThreadLDWeightCode No.
    [mm][in][mm][in][kg]

    R2530011 19/64''261 1/32''3.3553089
    R2830011 19/64''261 1/32''3.2553085
    R3230011 19/64''261 1/32''3.1553083

    12° Taper

    Reaming bit

    Carbide dimensionDWeight

    Code No.

    GaugeFront[mm][in][kg]
    [No.][mm][No.][mm]

    812.749.5893 1/22.0043011
    812.7412.710242.3043012
    8144141154 1/22.6843017
    814412.712753.5043013
    Pilot adapterThreadLDWeightCode No.
    [mm][in][mm][in][kg]

    R3225510 3/64''401 37/64''2.453082
    R3826510 25/64''401 37/64''253092

    12° Taper
    Reaming bit(Locking thread T12)Carbide dimensionDWeight

    Code No.

    GaugeFront[mm][in][kg]
    [No.][mm][No.][mm]

    812.74111024''3.5043000
    812.7412.71154 1/2''4.3043002
    814412.71275''5.1043001

    Reaming bit


    Thread

    Carbide dimensionDdWeight

    Code No.

    GaugeFront[mm][in][mm][in]
    [No.][mm][No.][mm][kg]

    Hole Opener


    T388147111024''512''4.0063043
    T38814712.71275''672 5/8''8.8063044
    T45814712.71275''732 7/8''8.3063045
    T388167141526''1024''15.463046
    ST588168141526''893 1/2''13.663047
    T3210169141787''763''15.963048
    T38101610142038''1526''34.563049
