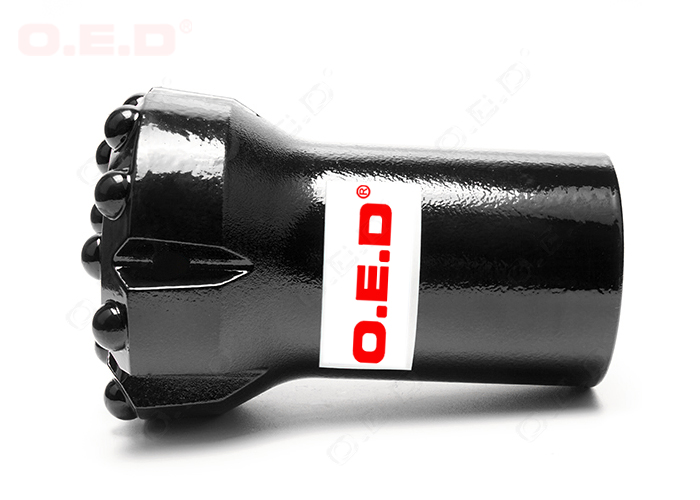

    Flat Face Design Diameter 102mm Button Bits Rock Drilling For Quarry


    Diameter 102mm Durable Hard Rock Drill Bits T45 Threaded Button Bit for Quarry


    Our Thread button bits:

    Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.


    Configuration of T45-102 button bits:

    • Thread: T45

    • Diameter:102mm

    • Gauge:8×14mm

    • Front:6×14mm

    • Skirt Design: Standard

    • Weight: 3.2KGS

    Face Design: Flat

    Carbide Design: Dome, ballistic, semi-ballistic

    water Holes: 2 on front, 2 on side


    Thread Button Bits:

    comprehensive range of various button bits shown as below:

    Thread sizes:R25,R28,R32,R35,R38,T38,T45,T51,ST58,ST60,GT60

    Head diameters:33mm~152mm;

    Face designs: Flat face, Drop center, Uni-face

    Skirt designs:Normal,Retrac,Straightrac


    Cross Bits & X-Type Bits:

    Threaded cross bits or threaded X bits are usually used for very hard and abrasive rock formation.

    We offer the most comprehensive range of threaded cross bits shown as below:

    Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51;
    Head diameters: 33mm ~ 152mm;
    Skirt designs: normal or retrac;


    14 Semi-ballistic carbide insertsT45 with drop center face, 89mm diameter and retrac skirt body match with for bench drilling and underground long hole drilling.


    T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground


    NameCode No.ThreadDiameterGaugeFrontSkirt DesignWeight(kg)

    Threaded Button Bits

    Q10-70-T45T45706*11mm3*11mmStandard2.1
    Q10-76-T45T45766*13mm3*12mmStandard2.7
    Q10-89-T45T45896*14mm4*14mmStandard4.9
    Q11-70-T45T45706*13mm5*11mmStandard2.3
    Q14-76-T45T45768*11mm6*11mmStandard2.6
    Q14-82-T45T45828*13mm6*11mmStandard3
    Q14-85-T45T45858*13mm6*13mmStandard3.2
    Q14-89-T45T45898*13mm6*13mmStandard3.2
    Q14-102-T45T451028*14mm6*14mmStandard4.2
    Q14-115-T45T451158*16mm6*14mmStandard7.5
    Q14-127-T45T451278*16mm8*14mmStandard8.8
    Q15-76-T45T45768*11mm5*10mmStandard2.5
    Q15-89-T45T45898*11mm4*11mmStandard3
    Q15-102-T45T451028*14mm4*11mmStandard4.4
    Q15-115-T45T451158*14mm4*14mmStandard7.2
    Q17-89-T45T45899*11mm8*10mmStandard3.2
    Q17-102-T45T451029*13mm8*13mmStandard4.2
    Q17-115-T45T451159*14mm9*13mmStandard7.5
    Q17-127-T45T451279*14mm9*13mmStandard8.8
    Q10-76-T45-RCT45766*13mm3*11mmRetrac2.7
    Q10-89-T45-RCT45896*14mm4*14mmRetrac7.9
    Q11-70-T45-RCT45706*11mm3*11mmRetrac2.1
    Q11-76-T45-RCT45766*13mm3*11mmRetrac2.6
    Q11-89-T45-RCT45896*14mm3*13mmRetrac4.5
    Q14-76-T45-RCT45768*11mm6*11mmRetrac2.7
    Q14-76-T45-RCT45768*11mm5*10mmRetrac2.6
    Q14-82-T45-RCT45828*13mm6*13mmRetrac4
    Q14-89-T45-RCT45898*13mm6*13mmRetrac4.9
    Q14-102-T45-RCT451028*14mm6*14mmRetrac6.5
    Q14-115-T45-RCT451158*16mm6*14mmRetrac9.2
    Q14-115-T45-RCT451158*14mm4*13mmRetrac8.6
    Q14-127-T45-RCT451278*16mm8*14mmRetrac10.3

    Remarks: Other specifications are available according to customers' requirements
