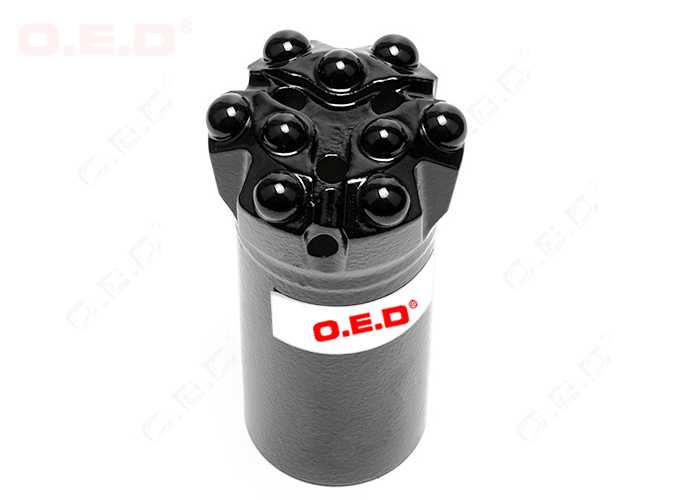

R25 Diameter 51mm Dome Thread Button Bits Durable Hard Rock Drill Taper Button Bit

Description:

Suitable for powerful percussive drills and top hammers with high speed drifter, , such as Atlas Copco 282 rocket boomer, Atlas Copco 352 rocket boomer jumbo, AtlasCopcoD7roc, FurukawaHCR 1200, Tamrock, and Ingesoll Rand ECM660, the products are widely used in bench and production drilling, extensional drilling, our products with comparative advantages of the more prominent cost-effective as the famous brand in the world, our products have been recognized as high-quality brand of rock-drilling tools made in China.

Information of button bits:

• Thread: R25

• Diameter:51mm

• Gauge:6×10mm

• Front:3×10mm

• Skirt Design: Standard

• Weight: 0.93KGS

• Skirt Design: Standard

• water Holes: 3 on front, 3 on side

Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory

R25 thread cross bit , diameter 45-76 mm suitable for drifting and tunneling drilling application,easier to sharpen than X-bits, inset angles are equal on all four sides, Bits 64mm and less are easier to sharpen than button bits of the same size, In certain rock conditions, cross bits tend to produce a spiraled five sided hole (especially in diameters larger than 64 mm).

Threaded Drill Bits with Thread R25

Mining Tool B.D of O.E.D Machinery Grop, has been dedicated in development and production of mining drill rods and drill bits for many years, which forms six main series products: taper drill tools, thread drill tools, rotary drill tools, blast furnace frill tools, DTH drill tools, and coal mining tools. We can produce high quality of nearly hundreds of products, like hexagonal thread drill rod, extension rod, speed rod, DTH drill rod, blast furnace drill rod and so on, also shank adapter coupling sleeves, button bit, chisel bit, cross bit, etc.

Our products can be widely used in many basic energy construction projects, such as exploring new mountains, minerals, metallurgy, rail, highway, and water and electricity infrastructure etc.

Our member has stong capability of researching developing and advanced production technology. We have passed ISO9001 International Wuality System Certificate, we can provide superior standard drill tools and also customized drill tools.

Our Sales company, HUNAN GOLDEN GLOBE I AND E OED CO.,LTD., have over 20 years experience of export. We have exported the products to many countries.  Trust us that we can provide reliable service for you.

Why trust us and how to control the quality?

Let's me introduce our company.

We have three main workshops, heat treatment workshop, forging workshop and CNC workshop.

Material is very important for a good product. We have excellent heat treatment equipment to control the material quality. For each lot of products, we all have material certification. So even you have some special material requirement, we have best  solution for you. Do not hesitate to ask us if you have any question of material. Here's our heat treatment equipment.

Turning machine and grinding machine are also very important. we have advanced CNC machines and skillfull workers to keep the stable quality.

During production, we have engineer to check the dimensions. Our workers are highly trained and they will inspect the products after machining.

For the final inspection, we'll check the dimensions one by one to make sure the quality is qualifed. The inspection report will be sent to you before shipping if you have ordered our products.

We have provided many solutions for different customers.

For example:

Our customer in Norway. They required a special hole of the drill bit to match their specific drill rod.

Our customer in Korea. We have changed the material of their skirt and carbide button bit to diminish the consumption of drill bit.

Our customer in Chile, We provided different length of drill rod as per their requirement.

Our customer in South Africa, new design of thread drill bit have been sent according to their application.

.

.

.

Except regular products, we have the ability to design custom products to meet our customers' requirement. For different application, the solution is also different. So please send us your requirement and application, then we'll provide your best solution.

Quality is alway the most important things. Our price may not the cheapest, but we'll try to provide satisfied service and quality for you.

Devotion and Focus Makes Us Professional. Looking forward to working with you together.
