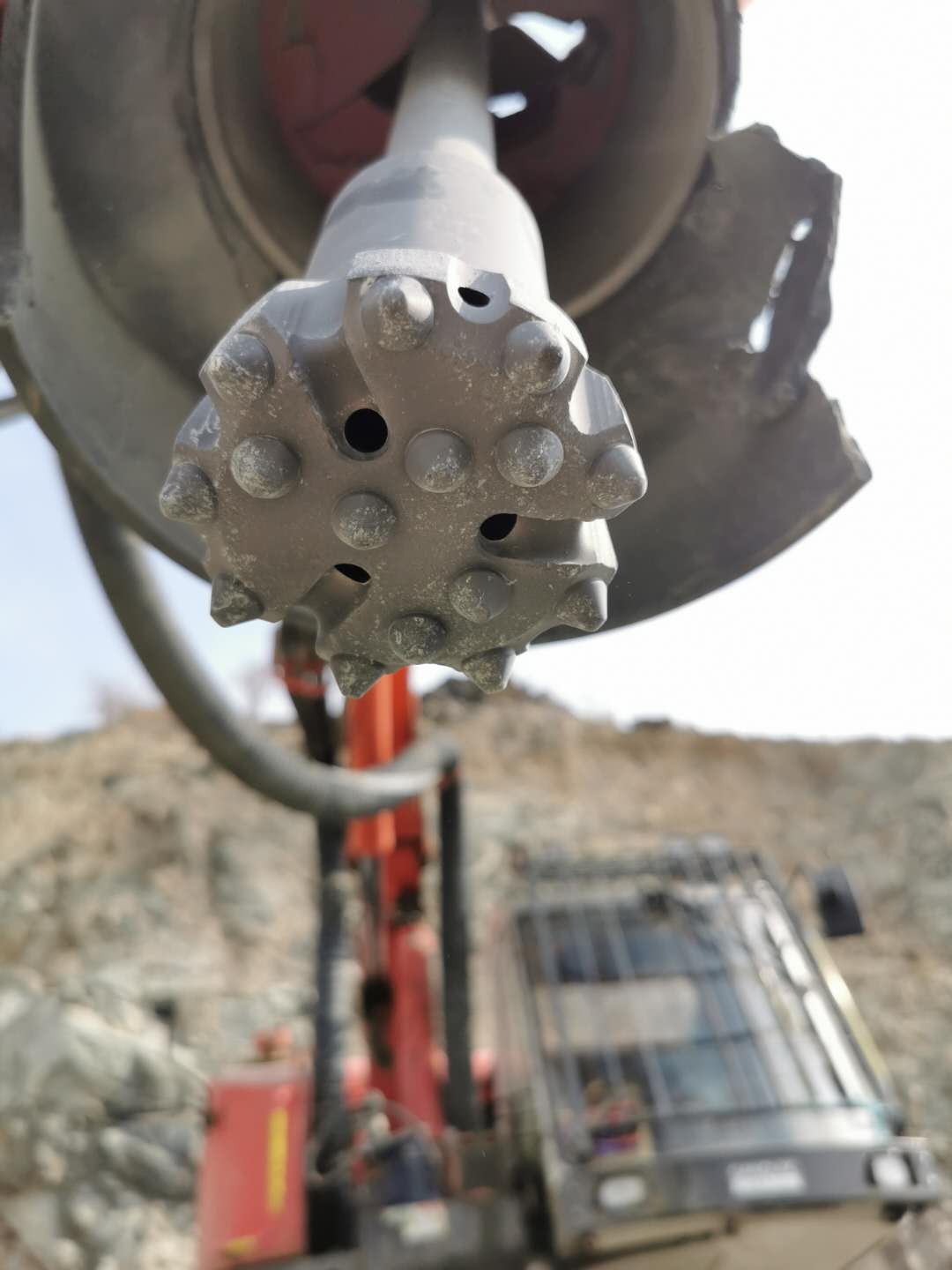

    14 Buttons T38 Drifting Tunneling Threaded Drill Bit For Diameter 89mm

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : T38/89
    Certification : ISO 9001 2008
    Price : Negotiable
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    14 Buttons T38 Drifting Tunneling Threaded Drill Bit For Diameter 89mm

    14 buttons T38 Thread Button Bits for Drifting Tunneling Drilling Diameter 89mm


    T38-89 14 Buttons spcifications:

    Thread: T38 Diameter:89mm

    Buttons Gauge Buttons: 8*12mm Front Buttons: 6*12mm

    Weight: 5.4KGS

    Carbide Button Design: Dome/Semi-Ballistic


    Advantage:

    We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
    This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
    Meanwhile
    ,we will choose to use superior steel suitable for hot insertion technology,


    Our drilling tools have been sold throughout the world, Including Chile, Brazil, Uruguay, Norway, Turkey.

    Our Custom Services
    1.Custom bit diameter, smaller than 33mm or any other diameters.
    2.Custom Thread. According to your drill rod thread or drawing, we could provide the suitable thread for the drill bit.
    3.Custom shank rod. We could produce as per your drawing or samples.
    4.Custom buttons configuration. The buttons configuration is different due to different usage.
    5.Excellent quality to get max drilling performance for rock drills with long life and save up fuel cost


    T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground


    NameCode No.ThreadDiameterGaugeFrontSkirt DesignWeight

    Threaded Button Bits

    Q9-57-T38T38576*10mm3*10mmStandard1.3 KGS
    Q9-64-T38T38646*12mm3*11mmStandard1.7 KGS
    Q9-64-T38-RCT38646*12mm3*11mmRetrac1.8 KGS
    Q9-70-T38T38706*12mm3*11mmStandard2.0 KGS
    Q9-70-T38-RCT38706*12mm3*11mmRetrac2.5 KGS
    Q9-76-T38T38766*13mm3*13mmStandard2.4 KGS
    Q9-76-T38-RCT38766*13mm3*13mmRetrac2.5 KGS
    Q9-89-T38T38896*14mm3*13mmStandard3.4 KGS
    Q9-89-T38-RCT38896*14mm3*13mmRetrac4.9 KGS
    Q10-89-T38T38896*14mm4*14mmStandard3.3 KGS
    Q10-89-T38-RCT38896*14mm4*14mmRetrac3.0 KGS
    Q12-64-T38T38648*10 mm4*10mmStandard1.6 KGS
    Q12-64-T38-RCT38648*10mm4*10mmRetrac1.8 KGS
    Q12-89-T38T38898*11mm4*11mmStandard3.3 KGS
    Q12-89-T38-RCT38898*11mm4*11mmRetrac4.8 KGS
    Q12-102-T38T381028*14mm4*13mmStandard4.6 KGS
    Q12-102-T38-RCT381028*14mm4*13mmRetrac6.7 KGS
    Q13-76-T38T38768*11mm5*11mmStandard2.4 KGS
    Q13-76-T38-RCT38768*11mm5*10Retrac2.9 KGS
    Q14-76-T38T38768*11mm6*11mmStandard2.4 KGS
    Q14-76-T38-RCT38768*11mm6*11mmRetrac3.0 KGS
    Q14-89-T38T38898*13mm6*13mmStandard3.3 KGS
    Q14-89-T38-RCT38898*13mm6*13mmRetrac5.5 KGS
    Q14-102-T38T381028*14mm6*14mmStandard4.5 KGS
    Q14-102-T38-RCT381028*14mm6*14mmRetrac6.9 KGS
    Q14-115-T38T381158*16mm6*14mmStandard5.3 KGS
    Q17-89-T38T38899*11mm8*10mmStandard3.3 KGS
    Q17-102-T38T381029*13mm8*13mmStandard4.4 KGS
    Q18-115-T38T381159*14mm9*13mmStandard5.3 KGS

    Cross Bits

    CB-64-T38T386412*20.6Standard1.7 KGS
    CB-70-T38T387012.7*25Standard2.0 KGS
    CB-76-T38T387612.7*25Standard2.4 KGS
    CB-89-T89T388912.7*25Standard3.4 KGS
    CB-102-T38T3810216*25Standard4.6 KGS

    Remarks: Other specifications are available according to customers' requirements
