    T30/14 Self Drilling Rock Anchor For Quarry Thread Bolts Micropile Foundation

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : T30/14
    Certification : ISO 9001 2008
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

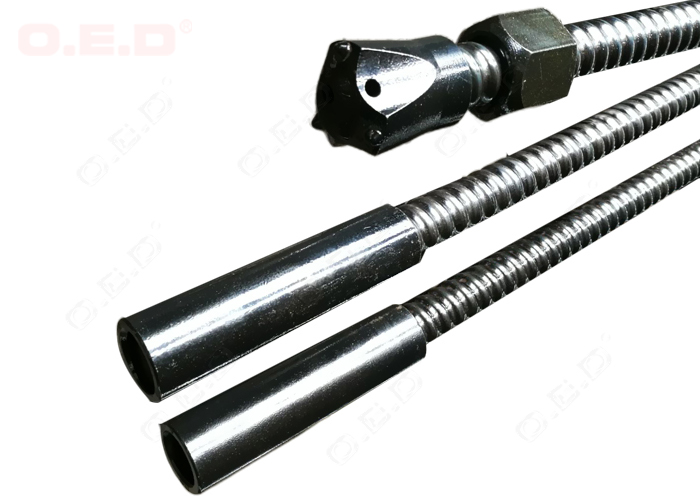

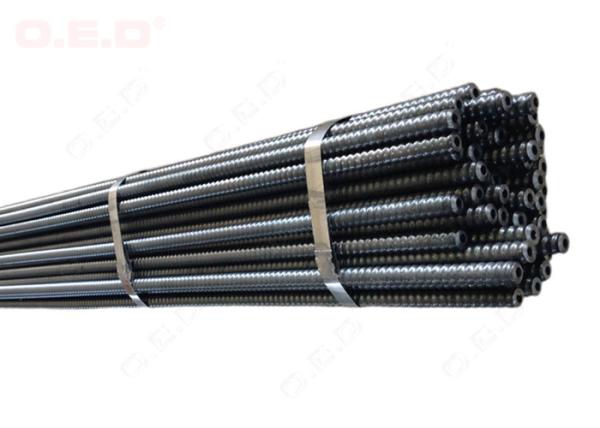

    T30/14 Self Drilling Rock Anchor For Quarry Thread Bolts Micropile Foundation

    Anchors Bolts T30/14 Self Drilling Rock Anchors for Quarry Thread Bolts


    Specification:

    Outer Diameter:30mm

    Inner Diameter:14mm

    Utimate Load:275KN

    Yield load:220KN

    Weight:2.9kg/meter


    Features of hollow grounting anchor bolt

    • Particularly suitable for difficult ground conditions.

    • A high rate of installation since drilling, placing and grouting can be performed in one single operation.

    • Self drilling system eliminates the requirement for a cased borehole.

    • Installation with simultaneous drilling and grouting possible.

    • Easy installation in all directions, also upwards.

    • Suitable for working in limited space, height and in areas of difficult access.

    • Simple post grouting system. • Hot-dipped galvanizing for corrosion protection


    Applications in Tunneling & Ground Engineering

    • Radial bolting

    • Slope stabilization

    • Forepoling

    • Micro injection pile

    • Face stabilization

    • Temporary support anchor

    • Portal preparation

    • Soil nailing


    Hollow anchor bar technical data:

    SizeO.D(mm)I.D(mm)Ultimate Load(KN)Yield Load(KN)Weight(kg/meter)AAGT
    R25N-1425.014.02001502.3
    R32L-2232.022.02201802.8
    R32N-2132.021.02802302.9
    R32N-18.532.018.52802303.4
    R32S-17.532.017.53602803.5
    R32S-1532.0153602804.1
    R38N-2138.021.05004004.8>8%>5%
    R38N-1938.019.05004005.5>12%>10%
    R51L-3851.038.05504506.0
    R51L-3651.036.05504507.6
    R51N-3651.036.08006307.6
    R51N-3351.033.08006308.4
    T76N-4976.049.01600120016.5
    T76S-4576.045.01900150019
    T30-1130.011.03202603.3
    T30-1430.014.02752202.9
    T40-1640.016.06605257.1
    T40-2040.020.05404255.6
    T52-2652.026.093073010
    T73-5673.056.0103583010.8
    T73-5373.053.0116097014
    T73-4573.045.01600127017.5
    T103-78103.078.02270180025
    T103-51103.051.03660267044
    Steel gradeAcc. to EN10083-1 / EN10210-1
    Thread directionLeft hand / Right hand
    Thread standardISO 10208 / ISO1720 / Other international standards
