    Soil Nailing Hollow Rock Anchor Bolts R32N/21 Roof Self Drilling OED / OEM

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : R32N/21
    Certification : ISO 9001 2008
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

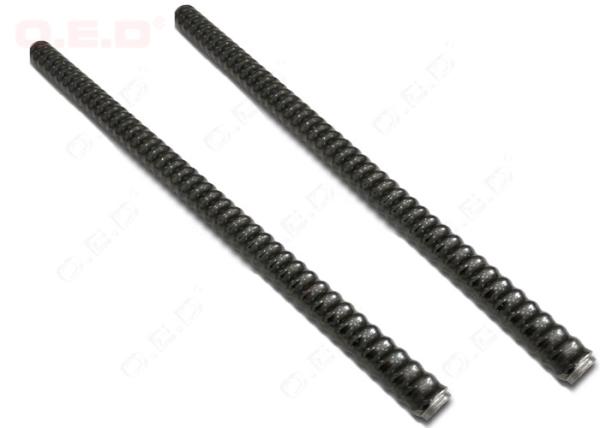

    Soil Nailing Hollow Rock Anchor Bolts R32N/21 Roof Self Drilling OED / OEM

    Soil Nailing Rock Bolts Hollow Anchor R32N/21 Roof Self Drilling Rock Anchors


    Description:

    The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles etc jobs, which is widely used in mining, tunneling, railway, metro construction etc projects. rock anchor bolt R32


    R Thread size:R25,R32,R38,R51,

    T Thread size: T30, T40, T52, T73, T76,T103, T127, T130.
    Thread standard: ISO10208/ISO1720



    Features:

    Outer Diameter:32mm

    Inner Diameter:21mm

    Utimate Load:280KN

    Yield load:230KN

    Weight:2.9kg/meter

    Application Area:
    Water well-drilling
    Quarry
    Foundation piling
    Geothermal drilling
    Soil nailing
    Tunnel support
    Jet grouting
    Micropile
    Mining


    Hollow anchor bar technical data:

    SizeO.D(mm)I.D(mm)Ultimate Load(KN)Yield Load(KN)Weight(kg/meter)
    R25N-1425.014.02001502.3
    R32L-2232.022.02201802.8
    R32N-2132.021.02802302.9
    R32N-18.532.018.52802303.4
    R32S-17.532.017.53602803.5
    R32S-1532.0153602804.1
    R38N-2138.021.05004004.8
    R38N-1938.019.05004005.5
    R51L-3851.038.05504506.0
    R51L-3651.036.05504507.6
    R51N-3651.036.08006307.6
    R51N-3351.033.08006308.4
    T76N-4976.049.01600120016.5
    T76S-4576.045.01900150019
    T30-1130.011.03202603.3
    T30-1430.014.02752202.9
    T40-1640.016.06605257.1
    T40-2040.020.05404255.6
    T52-2652.026.093073010
    T73-5673.056.0103583010.8
    T73-5373.053.0116097014
    T73-4573.045.01600127017.5
    T103-78103.078.02270180025
    T103-51103.051.03660267044
    Steel gradeAcc. to EN10083-1 / EN10210-1
    Thread directionLeft hand / Right hand
    Thread standardISO 10208 / ISO1720 / Other international standards
