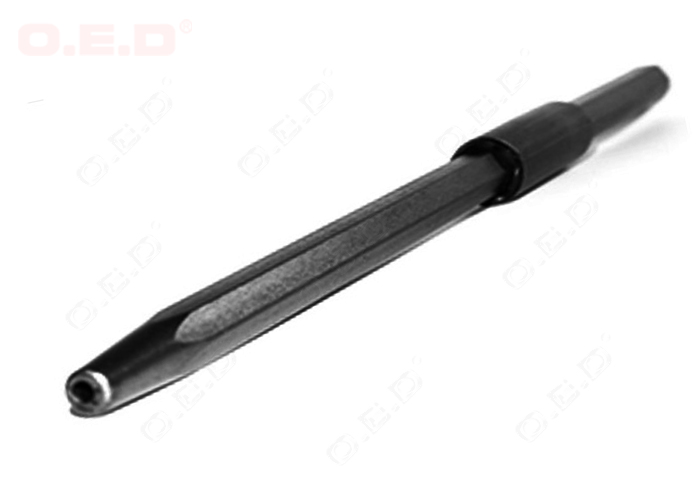

Custom Tapered Drill Rods Hex19/Hex22*1200 mm 7° Forged Collar Tapper Rods

Custom Hex 25/19×800mm specification:

Hex: 19mm
Length: 1200mm
Tapered Degree: 7°
Hex shank 25×108mm

Advantages:

This Custom tapered drill rod use hex shank 25 to suit a specicial drill machine. Also our carburization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of tapered drill rod.

Similar specification:

Tapered Drill Rod for Small Hole Drilling

A range of Rods and T.C. Tipped Bits (Cross and Button). Shank sizes 82.5mm*22mm(3 1/4”*7/8”),108mm*25mm(4 1/4”*1”), 159mm*25mm(6 1/4”*1). Lengths 600mm to 6400, (2’-21’). Available in Taper Angles of 4.8º,7º,11º and 12ºon 22mm and 25mm (7/8”&1”)Hexagon. Bit Diameters: Cross-32mm to 51,(1 1/4”-2”), Button -32,, to 51mm(1 1/4”-2”)

Tapered drill rod, another name called taper rod or conical drills, tapered drill steels from rock drilling tools manufacturer OED which provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 meters to 3.6 meters in length—are measured from the collar to the rock drill bits end.

Mining Tool B.D of O.E.D Machinery Grop, has been dedicated in development and production of mining drill rods and drill bits for many years, which forms six main series products: taper drill tools, thread drill tools, rotary drill tools, blast furnace frill tools, DTH drill tools, and coal mining tools. We can produce high quality of nearly hundreds of products, like hexagonal thread drill rod, extension rod, speed rod, DTH drill rod, blast furnace drill rod and so on, also shank adapter coupling sleeves, button bit, chisel bit, cross bit, etc.

Our products can be widely used in many basic energy construction projects, such as exploring new mountains, minerals, metallurgy, rail, highway, and water and electricity infrastructure etc.

Our member has stong capability of researching developing and advanced production technology. We have passed ISO9001 International Wuality System Certificate, we can provide superior standard drill tools and also customized drill tools.

Our Sales company, HUNAN GOLDEN GLOBE I AND E OED CO.,LTD., have over 20 years experience of export. We have exported the products to many countries.  Trust us that we can provide reliable service for you.

Why trust us and how to control the quality?

Let's me introduce our company.

We have three main workshops, heat treatment workshop, forging workshop and CNC workshop.

Material is very important for a good product. We have excellent heat treatment equipment to control the material quality. For each lot of products, we all have material certification. So even you have some special material requirement, we have best  solution for you. Do not hesitate to ask us if you have any question of material. Here's our heat treatment equipment.

Turning machine and grinding machine are also very important. we have advanced CNC machines and skillfull workers to keep the stable quality.

During production, we have engineer to check the dimensions. Our workers are highly trained and they will inspect the products after machining.

For the final inspection, we'll check the dimensions one by one to make sure the quality is qualifed. The inspection report will be sent to you before shipping if you have ordered our products.

We have provided many solutions for different customers.

For example:

Our customer in Norway. They required a special hole of the drill bit to match their specific drill rod.

Our customer in Korea. We have changed the material of their skirt and carbide button bit to diminish the consumption of drill bit.

Our customer in Chile, We provided different length of drill rod as per their requirement.

Our customer in South Africa, new design of thread drill bit have been sent according to their application.

.

.

.

Except regular products, we have the ability to design custom products to meet our customers' requirement. For different application, the solution is also different. So please send us your requirement and application, then we'll provide your best solution.

Quality is alway the most important things. Our price may not the cheapest, but we'll try to provide satisfied service and quality for you.

Devotion and Focus Makes Us Professional. Looking forward to working with you together.
