    T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : T38
    Certification : ISO 9001 2008
    Price : Negotiable
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm

    T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm


    Rock drilling tools factory OED manufactures rock drill bits: T38 Threaded Button Bits is the most important size for
    benching and long-hole drilling underground.
    Code No.: Q12-64-T38
    Diameter: 64mm
    Length: 130mm
    Gauge Buttons: 10mm*8
    Front Buttons: 10mm*4
    Skirt Design: Standard
    Carbide Design: Dome
    Face Design: Flat
    Water Holes: 2 on front
    Weight: 1.66kg



    Diameter 64mm 76mm, 89mm,
    Skirt body: retrac, and normal,
    Face type: flat, uniface, drop center
    Carbide shape: Dome, ballistic, semi-ballistic
    Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

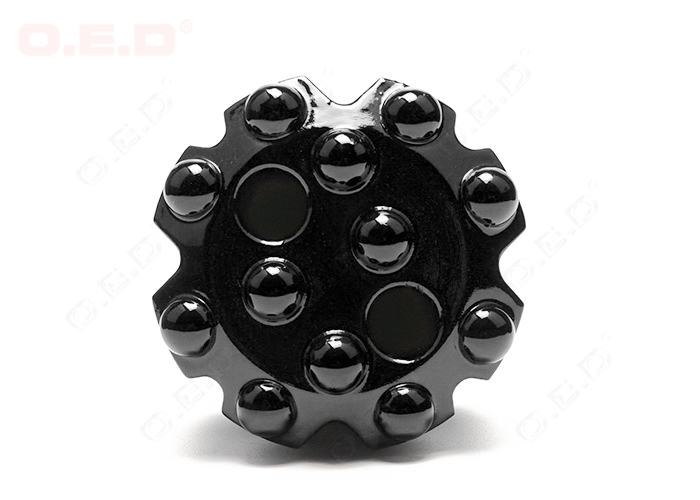

    12 Dome carbide inserts T38 threaded drill bits with flat face design, 64mm diameter and normal skirt body for bench
    drilling and underground long hole drilling.



    T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground


    NameCode No.ThreadDiameterGaugeFrontSkirt DesignWeight

    Threaded Button Bits

    Q9-57-T38T38576*10mm3*10mmStandard1.3 KGS
    Q9-64-T38T38646*12mm3*11mmStandard1.7 KGS
    Q9-64-T38-RCT38646*12mm3*11mmRetrac1.8 KGS
    Q9-70-T38T38706*12mm3*11mmStandard2.0 KGS
    Q9-70-T38-RCT38706*12mm3*11mmRetrac2.5 KGS
    Q9-76-T38T38766*13mm3*13mmStandard2.4 KGS
    Q9-76-T38-RCT38766*13mm3*13mmRetrac2.5 KGS
    Q9-89-T38T38896*14mm3*13mmStandard3.4 KGS
    Q9-89-T38-RCT38896*14mm3*13mmRetrac4.9 KGS
    Q10-89-T38T38896*14mm4*14mmStandard3.3 KGS
    Q10-89-T38-RCT38896*14mm4*14mmRetrac3.0 KGS
    Q12-64-T38T38648*10 mm4*10mmStandard1.6 KGS
    Q12-64-T38-RCT38648*10mm4*10mmRetrac1.8 KGS
    Q12-89-T38T38898*11mm4*11mmStandard3.3 KGS
    Q12-89-T38-RCT38898*11mm4*11mmRetrac4.8 KGS
    Q12-102-T38T381028*14mm4*13mmStandard4.6 KGS
    Q12-102-T38-RCT381028*14mm4*13mmRetrac6.7 KGS
    Q13-76-T38T38768*11mm5*11mmStandard2.4 KGS
    Q13-76-T38-RCT38768*11mm5*10Retrac2.9 KGS
    Q14-76-T38T38768*11mm6*11mmStandard2.4 KGS
    Q14-76-T38-RCT38768*11mm6*11mmRetrac3.0 KGS
    Q14-89-T38T38898*13mm6*13mmStandard3.3 KGS
    Q14-89-T38-RCT38898*13mm6*13mmRetrac5.5 KGS
    Q14-102-T38T381028*14mm6*14mmStandard4.5 KGS
    Q14-102-T38-RCT381028*14mm6*14mmRetrac6.9 KGS
    Q14-115-T38T381158*16mm6*14mmStandard5.3 KGS
    Q17-89-T38T38899*11mm8*10mmStandard3.3 KGS
    Q17-102-T38T381029*13mm8*13mmStandard4.4 KGS
    Q18-115-T38T381159*14mm9*13mmStandard5.3 KGS

    Cross Bits

    CB-64-T38T386412*20.6Standard1.7 KGS
    CB-70-T38T387012.7*25Standard2.0 KGS
    CB-76-T38T387612.7*25Standard2.4 KGS
    CB-89-T89T388912.7*25Standard3.4 KGS
    CB-102-T38T3810216*25Standard4.6 KGS

    Remarks: Other specifications are available according to customers' requirements
