T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm

HUNAN GOLDEN GLOBE I AND E OED CO.,LTD.
Contact Now
    Buy cheap T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm from wholesalers

    Buy cheap T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm from wholesalers
    • Buy cheap T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm from wholesalers
    • Buy cheap T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm from wholesalers
    • Buy cheap T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm from wholesalers

    T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : T38/76
    Certification : ISO 9001 2008
    Price : Negotiable
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm

    T38 Threaded Button Bits for benching and long-hole drilling underground Diameter 76mm


    Diameter: 64mm
    Length: 130mm
    Gauge Buttons: 10mm*8
    Front Buttons: 10mm*4
    Skirt Design: Standard
    Carbide Design: Dome
    Face Design: Flat
    Water Holes: 2 on front
    Weight: 1.66kg


    T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground.


    OED choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
    This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
    Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
    In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.

    Diameter 64mm 76mm, 89mm,
    Skirt body: retrac, and normal,

    Face type: flat, uniface, drop center
    Carbide shape: Dome, ballistic, semi-ballistic
    Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

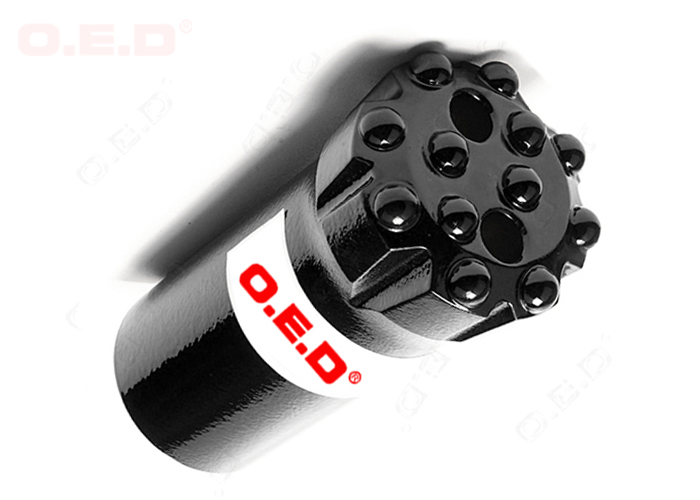

    Flat Face Threaded Drill Bit
    12 Dome carbide inserts T38 threaded drill bits with flat face design, 64mm diameter and normal skirt body for bench drilling and underground long hole drilling.


    Flat-face design detail of T38-64 threaded button bit, to match with extension drill rods.



    T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground


    NameCode No.ThreadDiameterGaugeFrontSkirt DesignWeight

    Threaded Button Bits

    Q9-57-T38T38576*10mm3*10mmStandard1.3 KGS
    Q9-64-T38T38646*12mm3*11mmStandard1.7 KGS
    Q9-64-T38-RCT38646*12mm3*11mmRetrac1.8 KGS
    Q9-70-T38T38706*12mm3*11mmStandard2.0 KGS
    Q9-70-T38-RCT38706*12mm3*11mmRetrac2.5 KGS
    Q9-76-T38T38766*13mm3*13mmStandard2.4 KGS
    Q9-76-T38-RCT38766*13mm3*13mmRetrac2.5 KGS
    Q9-89-T38T38896*14mm3*13mmStandard3.4 KGS
    Q9-89-T38-RCT38896*14mm3*13mmRetrac4.9 KGS
    Q10-89-T38T38896*14mm4*14mmStandard3.3 KGS
    Q10-89-T38-RCT38896*14mm4*14mmRetrac3.0 KGS
    Q12-64-T38T38648*10 mm4*10mmStandard1.6 KGS
    Q12-64-T38-RCT38648*10mm4*10mmRetrac1.8 KGS
    Q12-89-T38T38898*11mm4*11mmStandard3.3 KGS
    Q12-89-T38-RCT38898*11mm4*11mmRetrac4.8 KGS
    Q12-102-T38T381028*14mm4*13mmStandard4.6 KGS
    Q12-102-T38-RCT381028*14mm4*13mmRetrac6.7 KGS
    Q13-76-T38T38768*11mm5*11mmStandard2.4 KGS
    Q13-76-T38-RCT38768*11mm5*10Retrac2.9 KGS
    Q14-76-T38T38768*11mm6*11mmStandard2.4 KGS
    Q14-76-T38-RCT38768*11mm6*11mmRetrac3.0 KGS
    Q14-89-T38T38898*13mm6*13mmStandard3.3 KGS
    Q14-89-T38-RCT38898*13mm6*13mmRetrac5.5 KGS
    Q14-102-T38T381028*14mm6*14mmStandard4.5 KGS
    Q14-102-T38-RCT381028*14mm6*14mmRetrac6.9 KGS
    Q14-115-T38T381158*16mm6*14mmStandard5.3 KGS
    Q17-89-T38T38899*11mm8*10mmStandard3.3 KGS
    Q17-102-T38T381029*13mm8*13mmStandard4.4 KGS
    Q18-115-T38T381159*14mm9*13mmStandard5.3 KGS

    Cross Bits

    CB-64-T38T386412*20.6Standard1.7 KGS
    CB-70-T38T387012.7*25Standard2.0 KGS
    CB-76-T38T387612.7*25Standard2.4 KGS
    CB-89-T89T388912.7*25Standard3.4 KGS
    CB-102-T38T3810216*25Standard4.6 KGS

    Remarks: Other specifications are available according to customers' requirements
