T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit

    Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers

    Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers
    • Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers
    • Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers
    • Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers
    • Buy cheap T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit from wholesalers

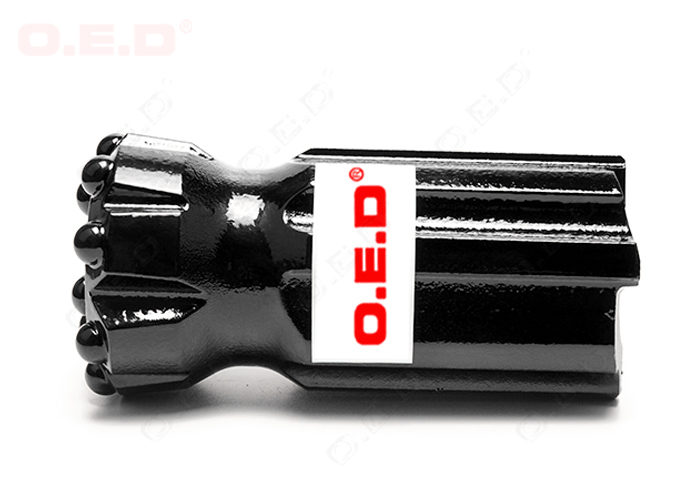

    T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit

    Ask Lasest Price
    Brand Name : OED/OEM
    Model Number : T38/76 RC
    Certification : ISO 9001 2008
    Price : Negotiable
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit

    T38 Retrac Thread Button Bits for Hard Rock Diameter 76mm Carbide Button Bit


    Diameter: 76mm
    Length: 155mm
    Gauge Buttons: 12mm*8
    Front Buttons: 12mm*4
    Skirt Design: Retrac
    Carbide Design: Dome
    Face Design: Flat
    Water Holes: 2 on front
    Weight: 3.50kg

    Other similar button bits:

    Diameter 64mm 76mm, 89mm,
    Skirt body: retrac, and normal,
    Face type: flat, uniface, drop center
    Carbide shape: Dome, ballistic, semi-ballistic
    Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.


    12 Dome carbide inserts T38 threaded drill bits with flat face design,
    76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.


    Flat-face design detail of T38-64 threaded button bit with dome buttons, retrac skirt, to match with extension drill steels.


    T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground


    NameCode No.ThreadDiameterGaugeFrontSkirt DesignWeight

    Threaded Button Bits

    Q9-57-T38T38576*10mm3*10mmStandard1.3 KGS
    Q9-64-T38T38646*12mm3*11mmStandard1.7 KGS
    Q9-64-T38-RCT38646*12mm3*11mmRetrac1.8 KGS
    Q9-70-T38T38706*12mm3*11mmStandard2.0 KGS
    Q9-70-T38-RCT38706*12mm3*11mmRetrac2.5 KGS
    Q9-76-T38T38766*13mm3*13mmStandard2.4 KGS
    Q9-76-T38-RCT38766*13mm3*13mmRetrac2.5 KGS
    Q9-89-T38T38896*14mm3*13mmStandard3.4 KGS
    Q9-89-T38-RCT38896*14mm3*13mmRetrac4.9 KGS
    Q10-89-T38T38896*14mm4*14mmStandard3.3 KGS
    Q10-89-T38-RCT38896*14mm4*14mmRetrac3.0 KGS
    Q12-64-T38T38648*10 mm4*10mmStandard1.6 KGS
    Q12-64-T38-RCT38648*10mm4*10mmRetrac1.8 KGS
    Q12-89-T38T38898*11mm4*11mmStandard3.3 KGS
    Q12-89-T38-RCT38898*11mm4*11mmRetrac4.8 KGS
    Q12-102-T38T381028*14mm4*13mmStandard4.6 KGS
    Q12-102-T38-RCT381028*14mm4*13mmRetrac6.7 KGS
    Q13-76-T38T38768*11mm5*11mmStandard2.4 KGS
    Q13-76-T38-RCT38768*11mm5*10Retrac2.9 KGS
    Q14-76-T38T38768*11mm6*11mmStandard2.4 KGS
    Q14-76-T38-RCT38768*11mm6*11mmRetrac3.0 KGS
    Q14-89-T38T38898*13mm6*13mmStandard3.3 KGS
    Q14-89-T38-RCT38898*13mm6*13mmRetrac5.5 KGS
    Q14-102-T38T381028*14mm6*14mmStandard4.5 KGS
    Q14-102-T38-RCT381028*14mm6*14mmRetrac6.9 KGS
    Q14-115-T38T381158*16mm6*14mmStandard5.3 KGS
    Q17-89-T38T38899*11mm8*10mmStandard3.3 KGS
    Q17-102-T38T381029*13mm8*13mmStandard4.4 KGS
    Q18-115-T38T381159*14mm9*13mmStandard5.3 KGS

    Cross Bits

    CB-64-T38T386412*20.6Standard1.7 KGS
    CB-70-T38T387012.7*25Standard2.0 KGS
    CB-76-T38T387612.7*25Standard2.4 KGS
    CB-89-T89T388912.7*25Standard3.4 KGS
    CB-102-T38T3810216*25Standard4.6 KGS

    Remarks: Other specifications are available according to customers' requirements
